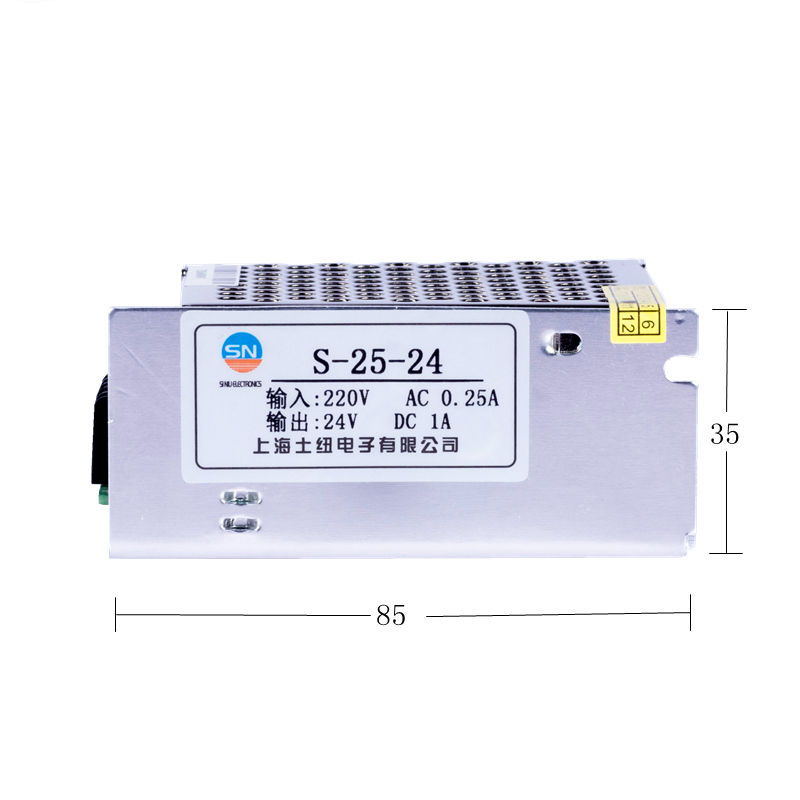

The S-25-24 is a 25W single-output enclosed switching power supply--3. As part of the S-25 series, it provides a stable 24V DC output with a maximum current of 1.1A

Key Features

• High Efficiency: Utilizes advanced switching technology with an efficiency of up to 80%--2-3.

• Universal AC Input: Supports a wide input range of 85～264VAC, suitable for global use. Also accepts 120～370VDC input

• High Stability: Offers excellent output stability with a voltage accuracy of ±1.0%-. Features an adjustable output voltage range of ±10%

• Comprehensive Protection: Built-in protections against short circuit, overload, and over-voltage--3. Overload protection is triggered at 105%～150% of rated poweand recovers automatically upon fault removal-

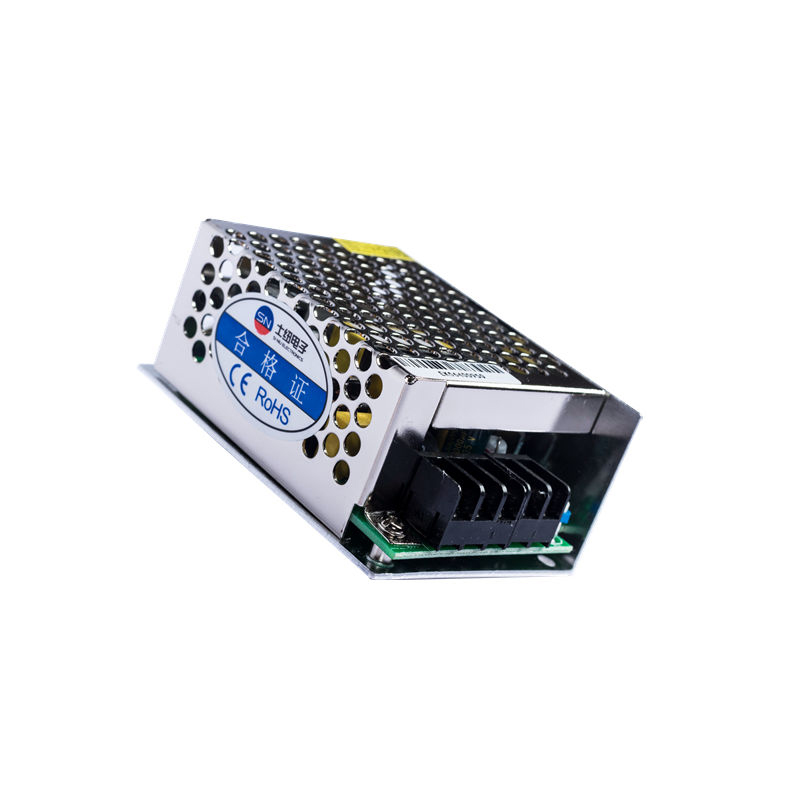

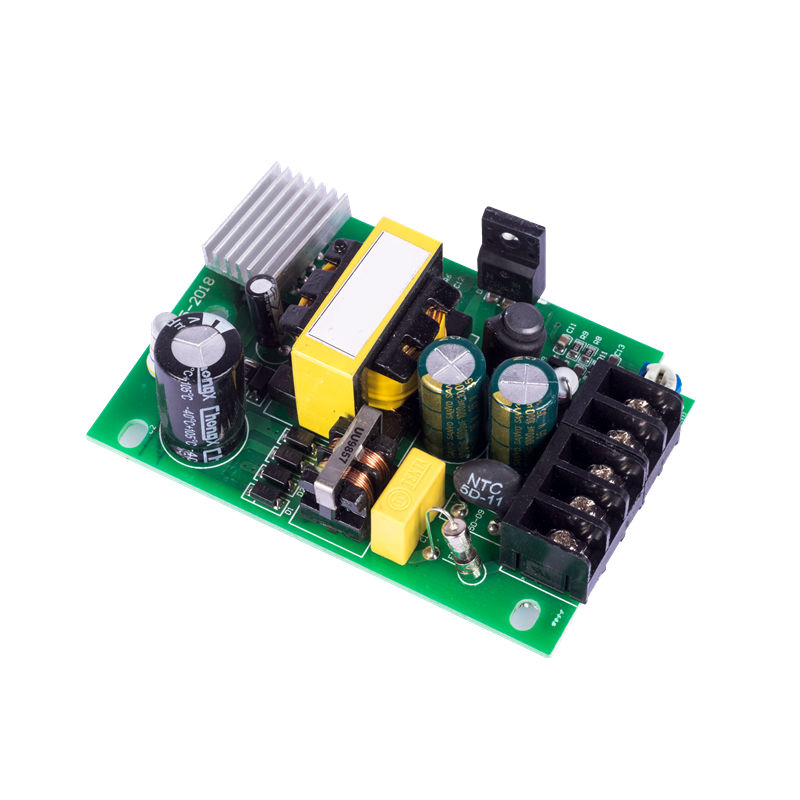

• Durable Construction: Housed in a sturdy aluminum case with anodized treatment for corrosion resistance-1. Utilizes high-quality components like a pure copper transformer and undergoes 100% full-load burn-in testing.

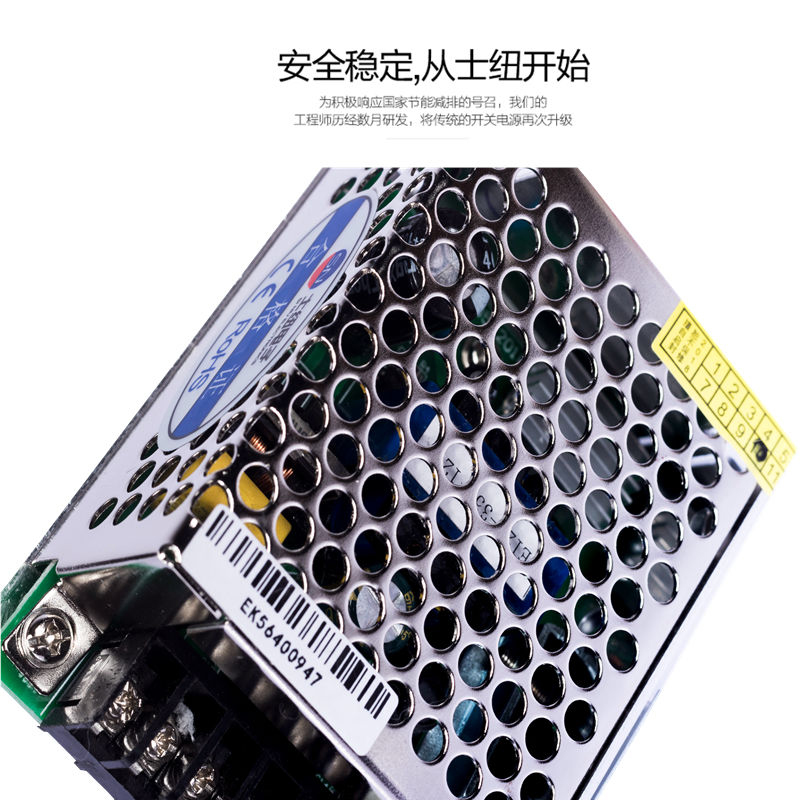

• Efficient Cooling: Features a natural air convection cooling design-, complemented by a ventilated casing for prolonged operation-

• Low Noise & Interference: Built-in EMI filtering circuity

• ensures stable operation even in complex electromagnetic environment.

• Safety Approvals: Complies with international safety standards including UL, TUV, and CE-3-5-11.

Detailed Specifications

Applications

With its stable and reliable performance, the S-25-24 is widely used in LED lighting, industrial automation-, communication equipment, and security surveillance systems.
